SEG series Leakage circuit breakers - RCCB
| 框架容量AF | A | 30 | 50 | |||||||
| 型式 Type | SEG30 | SEG50 | ||||||||
| 極數 Poles | P | 2 | ||||||||
| 相線式 Φ.W | 1Φ2W | |||||||||
| 額定電壓 Ue | VAC | 110/220 | ||||||||
| 額定電流 In | A | 10、15、20、30 | 15、20、30、40、50 | |||||||
| 額定靈敏度電流 I△n | mA | 30、100、200、300 | 30 | |||||||
| 不動作電流 I△no | mA | 1/2 I△n | ||||||||
| 動作時間 Trip time | 0.1 秒以內 within 0.1 second | |||||||||
| 額定短時間電流 | kA | 1.5 | 2.5 | |||||||
|
尺寸 (mm) |
a | 32 | 35 | |||||||
| b | 70 | |||||||||
| c | 35 | 42 | ||||||||
| d | 54 | 56 | ||||||||
| bb | 62 | |||||||||
| 重量 Wt. | g | 100 | 110 | |||||||
The Mini SEG models are available in two frame capacities: SEG30 and SEG50. These models are designed with 2 poles, suitable for single-phase 2-wire systems. They can be easily integrated into electrical circuits to provide effective leakage protection.
The Mini SEG models have a rated voltage (Ue) of 110/220V AC, ensuring compatibility with common electrical systems. This versatility allows for easy installation in residential, commercial, and industrial environments.
With a range of rated currents (In) available, including options such as 10A, 15A, 20A, 30A, 40A, and 50A, the Mini SEG models offer flexibility to meet various load requirements. This enables precise protection for different electrical circuits.
The Mini SEG models are equipped with different rated sensitivity currents (I△n) options, such as 30mA, 100mA, 200mA, and 300mA. These sensitivity levels ensure efficient detection of leakage currents and prompt tripping of the circuit breaker to prevent potential electrical hazards.
Product Image
SEG-30

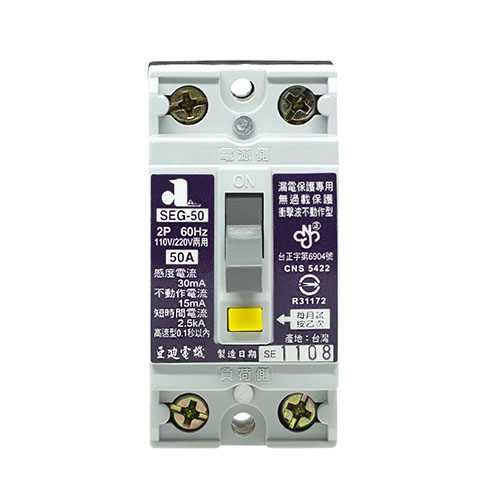

SEG-50
